Furnas - Motor Control Center - System 89
 Furnas Motor Control Centers Furnas Parts Motor Control System 89 PDQ

Southland Electric stocks a complete line of Furnas System 89 motor control center parts and accessories. Whether you need a contact kit or a complete vertical, Southland Electric has the parts you need to get the job done. The Furnas System 89 motor control centers provide an efficient means of grouping electric motor controls and other devices in one compact motor control center. Their modular and compact design allows for the most efficient space utilization for future additions or modifications. These are top quality motor control centers built with the customer in mind.

                 Furnas System / 89
Related Items

Furnas Motor Starters

Furnas Heaters

Furnas Contact Kits

Furnas Replacement Coils

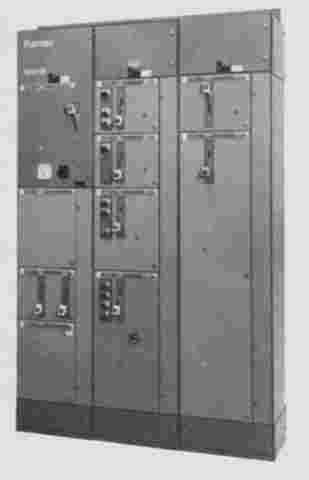

Furnas - Motor Control Center - System 89 PDQ
  • NEMA Class I Type A, B, & C or Class II Type B & C by NEMA
  • Standard ICS 2-322
  • UL Listed
  • Rated 600v, 50/60 Hz
  • 42,000A Symmetrical or 65,000, 85,000 or 100,000A Symmetrical Short Circuit
  • Bus Bracing
  • 600A, 800A, 1200A, 1600A, 2000A Copper Horizontal Bus
  • 300A, 600A Copper Vertical Bus; 600A for Back to Back Sections
  • Up to 200A Main Circuit Breaker
  • Up to 1200A Main Fusible Switch
  • Sheet Metal Exceeds UL 845 Gauge Requirements
  • Standard Structure UL Labeled
  • Ground Bus as Required 300A Minimum
  • Neutral Bus as Required 300A Minimum
  • Vertical Ground Bus 300A with Motor Ground Termination as Required
  • 15 or 20 inch front
  • 20 inch Back to Back
  • NEMA 1, 1 Gasketed, 2, 3R and 12
